POSEIDON CATWALK

The Poseidon Catwalk is a safe and secure method of adding a walkway to a barge deck utilizing unused connectors.


Dimensions & Weight Of Stock Sizes Available

  • Shipping weight of 10 ft section = 1,093 lbs.

FEATURES AND SPECIFICATIONS

  • Easily installed utilizing the barges interlocking connection system.
  • 10 ft x 3 ft walking surface with bolt on galvanized bar grate for durability in marine environments.
  • Constructed of A36 Steel, Channel, and 4x4 Square Tube.
  • Removable 42 inch high handrail sections painted High Visibility Yellow.

  • Catwalk sections provide walking surface flush with deck surface of barge platform.
  • Designed to safely accommodate a distribution load of 500 lbs/ft. Not to exceed 5,000lbs per 10 ft section.

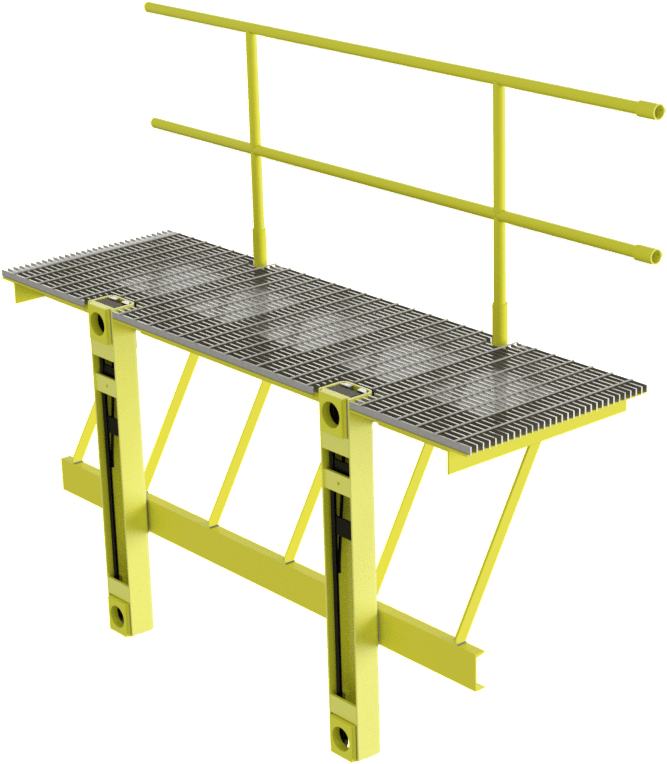

  • P2-5ft design shown, similar versions available for P10, P2-7, and P1-5 style barges.
