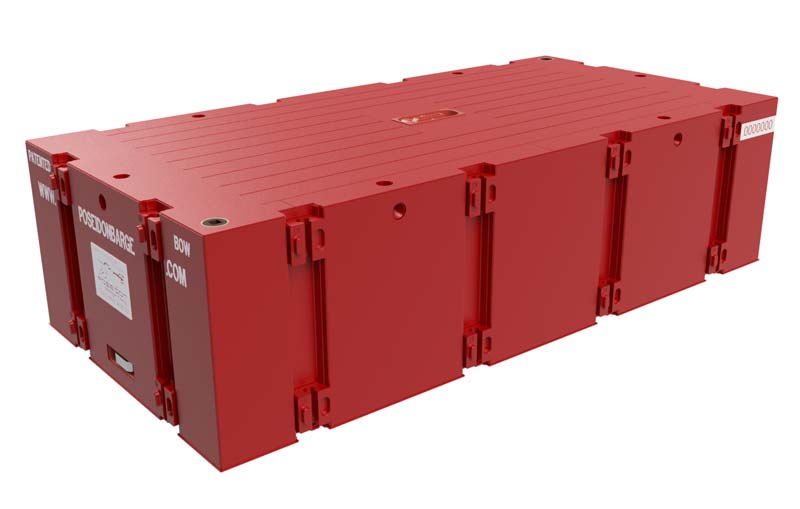

P1N NARROW SECTIONAL BARGES

Poseidon’s new & used Narrow Standard barges are 7.5′ x 30′ x 4′ deep. The Narrows are fabricated as strong as the P1-5′ barges with 8 connection points on the sides and two on the ends. Poseidon offers the P1N Spud pocket using 18″ spuds. The P1N barge is capable of floating excavators, small cranes, man lifts and other construction equipment. Consult your Poseidon Barge Ltd. sales representative for stability analysis and suggested platform configurations.

Dimensions & Weight Of Stock Sizes Available

  • 30’ x 7’6’ x 4’, 14,700 lbs.
  • 15’ x 7’6” x 4’, 8,140 lbs.

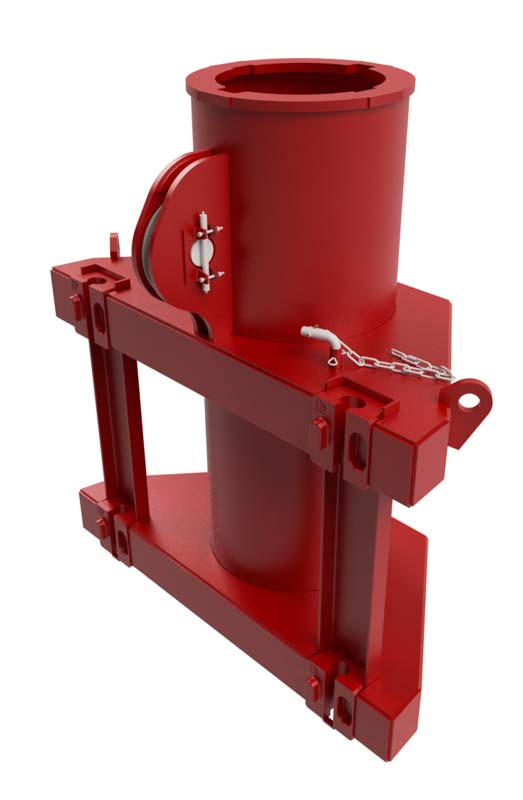

  • External Mount Spud Pockets
  • 18" x 20', 30' or 40' Spuds

FEATURES AND SPECIFICATIONS

  • Exterior Coated with Marine Grade Baril Marine Coating
  • Interior Coated with Bio-Float Rust Inhibiton
  • 18″ Deck Hatch For Inspection and Ballast
  • Transport Two 7.5′ x 30′ x 4′ Barges Per Truck, No Over Width Permits Required!
  • Easy hairpin connection system for fast set up and knock down
  • Stock 18″ Spuds with Exterior Pockets
  • Deck Cleats Available
  • 8'3" x 7'4" x 4' Rakes Available
  • Single Pick Lifting Clevis
